Product Details

Bulldozer Track Pads Product Features：

Material	25MnB,25CrMnB
Colors	Black or Yellow
Processing	Forging, Casting, Machining, Heat treatment
MOQ	1 set
Warranty	One Year
Shipping Port	XIAMEN
Delivery Time	Within 15-30 days after payments

Bulldozer Track Pads

Bulldozer Track Pads Part Number：

Description	Length	Part Number	Model
TRACK SHOES 25”	635mm	198-6991	D3G
TRACK SHOE 16”	-	2063509	D4E
MASTER SHOE 16” D4E	-	2063517	D4E
TRACK SHOE 20 D4H 8E	-	9812	D4H 8E
TRACK SHOES 20.1”	510mm	235-2554	D5K
TRACK SHOE 560MM D6M	-	1061607	D6M
MASTER SHOE 560MM D6M	-	1061613	D6M
TRACK SHOE 22 ES D6R 6Y	-	6389	D6R 6Y
MASTER SHOE 22 ES D6R 6Y	-	6412	D6R 6Y
TRACK SHOE 915MM D6R	-	1967839	D6R
MASTER SHOE 915 6Y6302 D6R	-	3P 1132	D6R
TRACK SHOE 22 ES D8T	-	3261136	D8T
TRACK SHOE 24 ES D8T	-	7T 2392	D8T
TRACK SHOE 24 ES D9T	-	7T 2294	D9T
TRACK SHOE 24 ES D10T	-	7T 724	D10T
TRACK SHOE 28 ES D11T	-	3105823	D11T
TRACK SHOE 610 D65-15	610mm	14X-32-11370	D65-15
TRACK SHOE 610 ES D85-15	610mm	154-32-71390	D85-15
TRACK SHOE 610 ES D155-5	610mm	175-32-31410	D155-5
TRACK SHOE 610 ES D275-5	610mm	195-32-41112	D275-5
TRACK SHOE 610 ES D375-5	610mm	195-32-61110	D375-5
TRACK SHOE 810 ES D457-5	810mm	198-32-31540	D457-5

What are the specific steps and technical details of the heat treatment process for high-quality bulldozer track pads？

The heat treatment process for high-quality bulldozer track pads involves several key steps and technical details to ensure the performance and quality of the final product.

Material Selection and Pre-Treatment: First and foremost, selecting the appropriate material is crucial. For instance, 23MnB is a commonly used low-carbon steel that offers good hardenability and wear resistance. During the pre-treatment phase, surface cleaning and preheating may be necessary to remove any impurities or contaminants that could affect the heat treatment results.

Quenching Process: Quenching is the process of rapidly cooling the material to alter its microstructure, thereby enhancing its hardness and strength. Evidence suggests that using a roller-type mesh belt furnace for quenching is an innovative method that can effectively control the temperature and time during the heat treatment process. Additionally, spray quenching technology can be employed, where adjustments to the spray nozzle pressure can help control deformation.

Tempering Process: Tempering is a heat treatment process conducted after quenching to reduce brittleness and stabilize the microstructure. According to evidence, the selection of tempering temperature has a significant impact on the hardness and toughness of the final product. For example, NiCrMo steel can achieve a desirable tempered sorbite structure when tempered at temperatures between 450 and 550°C.

Quality Control and Inspection: Throughout the heat treatment process, it is essential to strictly control various parameters and conduct continuous quality monitoring. This includes testing the hardness, toughness, and wear resistance of the track pads to ensure they meet design specifications. If any soft spots or other quality issues are detected, adjustments to the process parameters or equipment settings may be required.

Post-Treatment: Depending on the requirements, some post-treatment steps may also be necessary, such as straightening and polishing, to improve the product's appearance and further enhance its performance.

Hot Tags : Bulldozer Track Pads For Sale Bulldozer Track Pads High Quality Bulldozer Track Pads Fit For Komatsu Bulldozer Track Pads Fit For Caterpillar Bulldozer Track Pads Replacement Bulldozer Track Pads At Best Price

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.

Related Products

Bulldozer Track Group

As a professional manufacturer of bulldozer undercarriage parts, we specialize in producing high-quality bulldozer track group consisting of the track shoes and track chains. Our bulldozer track groups are designed and manufactured using premium materials and advanced production techniques to ensure durability and performance. The track shoes are made of high-strength steel and hardened to resist wear and tear, while the track chains are made of alloy steel and heat-treated for maximum strength and resistance to stretching. We are a professional manufacturer of bulldozer undercarriage parts，click on the product name or use the search function in the top right corner to learn more. D6K Bulldoze Track Group D375A5 Dozer Track Group D10N Track Group Contact Information: Email: info@kthpart.com Whatsapp/ Phone: +86 188 5011 0101 Facebook: https://www.facebook.com/kthpart/

more +

Dozer Track Chain

We stock track chain to fit the smallest excavator to the largest D11N Cat Dozer. Track chains and track groups are available to fit all makes and models of excavators and dozers.Track chains are also available for other tracked machinery. Types of Dozer Track Chains – Dry Chains vs. Lubricated Chains When considering dozer track chains, there are two primary types: dry chains and lubricated chains. Dry chains have a lower initial cost compared to lubricated chains and are effective at keeping dirt and debris out, thereby reducing wear from contaminants. However, they require regular external lubrication to minimize wear, and without lubrication, the friction between pins and bushings can lead to faster wear. On the other hand, lubricated chains offer internal lubrication, which reduces friction and wear, resulting in a longer lifespan and lower maintenance compared to dry chains. They are ideal for heavy-duty applications where maintenance intervals are longer. The disadvantages of lubricated chains include a higher initial cost and the potential for seal failure over time, which can lead to the loss of internal lubrication. Click on the product name to enter the product page. For more products, please use the search function in the top right corner of the page. D10N Track Chain Assembly D6K Dozer Track Chain D85 Dozer Track Links D9N Dozer Track Group D375A-5 Track Group D10N Dozer Track Group

more +

Track Adjuster

Our Track Adjuster is mainly made of high-strength steel and wear-resistant materials, manufactured using advanced production techniques and equipment. Through high-quality heat treatment processes such as quenching and tempering, as well as precision machining and assembly,they have excellent strength, durability, and wear resistance and can be used for extended periods in harsh work environments.

more +

Dozer Undercarriage Parts

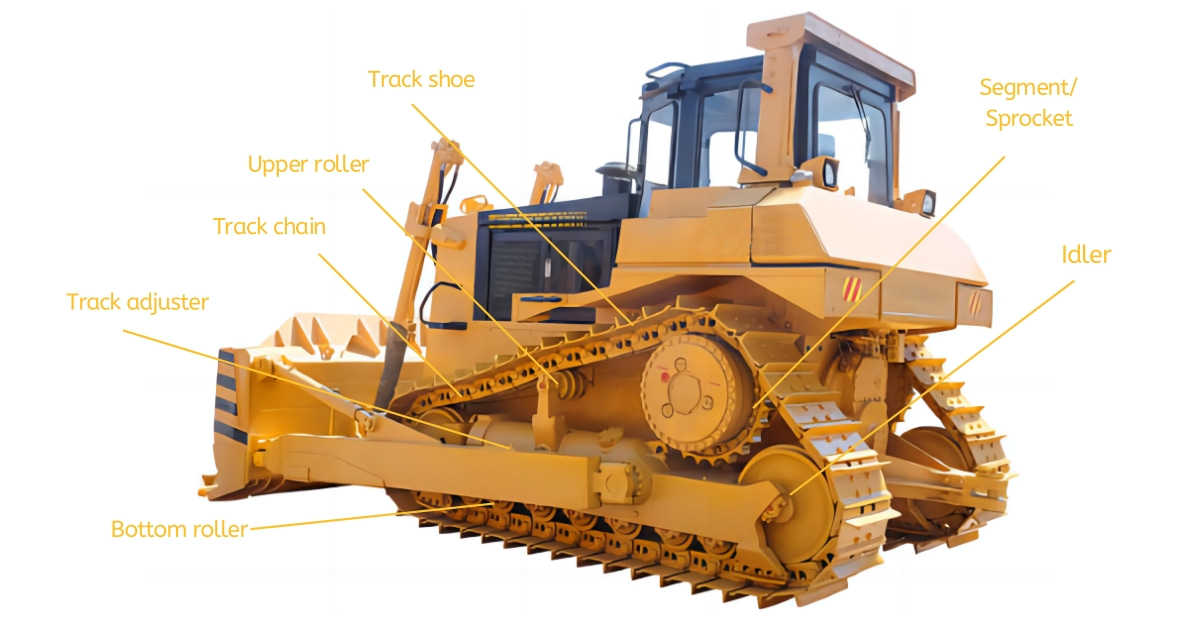

Dozer undercarriage parts refer to the various components that make up the undercarriage system of a bulldozer, such as track chains, track shoes, sprockets, idlers, and rollers. These parts are crucial to the performance and durability of the bulldozer, as they support the weight of the machine, provide traction and stability, and enable it to move over various types of terrain. Regular inspection, maintenance, and timely replacement of worn or damaged undercarriage parts are essential to ensure the safety, efficiency, and longevity of the bulldozer.
