Master Track Link 4680109 for Caterpillar D10 Bulldozer Undercarriage

Master Track Link 4680109 for Caterpillar D10 Bulldozer Undercarriage

Our 4680109 Master Track Link is specifically designed to handle the extreme drawbar pull of the Cat D10 series. Using high-density forging and specialized heat treatment, we ensure your bulldozer stays in the dirt and out of the shop.

Inquire Now

Product Categories

New products

Product Details

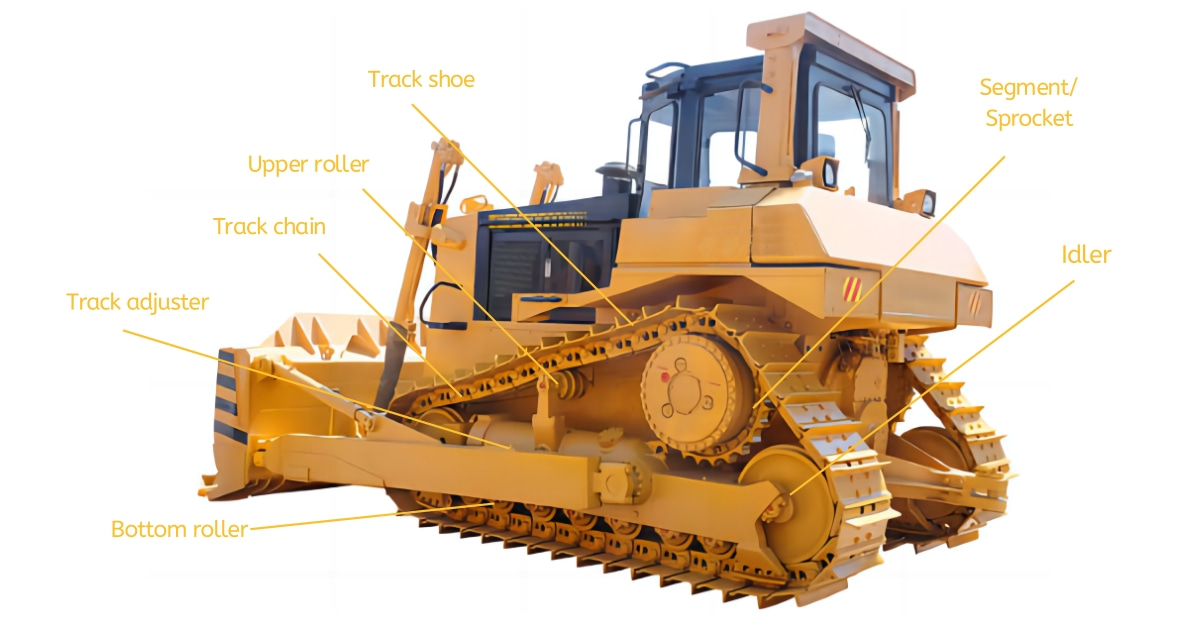

Dozer undercarriage parts

Caterpillar D10 master links product technical specifications:

Product Name: Heavy Duty Master Track Link (Split Link)

OEM Part Number: 4680109

Compatible Equipment: Caterpillar D10, D10T, D10T2, D10N, D10R Bulldozers

Why Choose Our 4680109 Master Link?

1. Superior Forging & Metallurgy

We use premium alloy steel (35MnB) forged to exacting standards. Unlike cast alternatives, our forged links eliminate internal porosity, providing the structural integrity required for bulldozer undercarriage parts operating in rocky or abrasive terrains.

2. Deep Case Hardening (52-58 HRC)

To combat external wear, our links undergo an automated induction hardening process.

Surface Hardness: 52-58 HRC.
Effective Case Depth: Up to 12mm, ensuring the link resists "mushrooming" and abrasive wear over thousands of service hours.

3. Precision "Split Link" Design

The 4680109 is a serrated split-style master link. Our CNC machining ensures that the serrated teeth mate perfectly, preventing "walking" or loosening of the track shoe bolts under high torque—a common failure point in low-quality aftermarket parts.

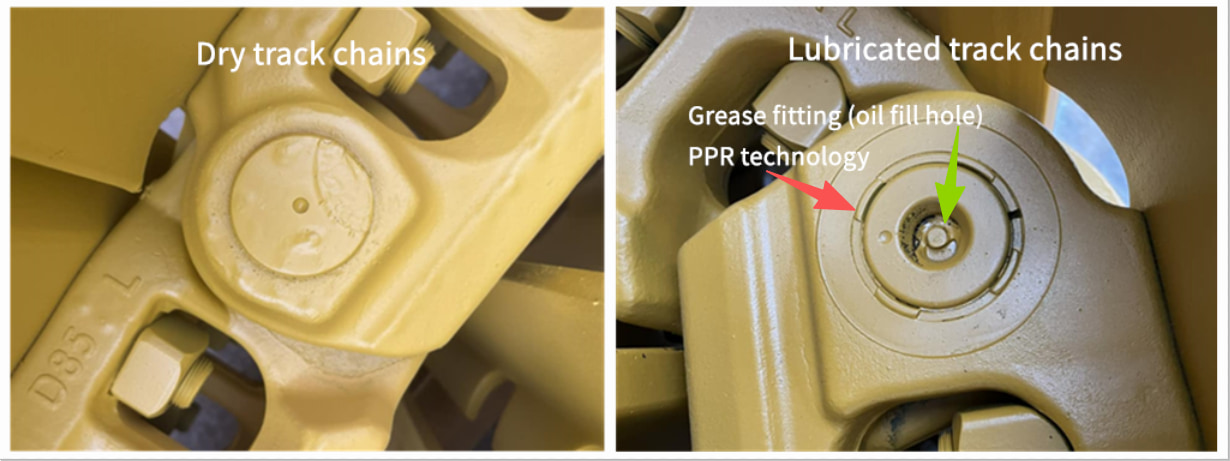

The differences between dry track chains and lubricated track chains

First, you can easily distinguish between lubricated track chains (oil chains) and dry track chains by appearance: lubricated chains have a grease fitting (oil fill hole) on the track pin, while dry chains do not.

Second, lubricated chains are typically equipped with master links, and although dry chains may also include master links for easier installation in some cases, this is not the primary difference between the two.

Third, some high-end lubricated track chains incorporate PPR technology (Positive Pin Retention).

For many large bulldozers, PPR-equipped lubricated track chains are strongly recommended or even standard, including:

Caterpillar: D8T, D9T, D10T, D11T
Komatsu: D275, D355, D375, D475

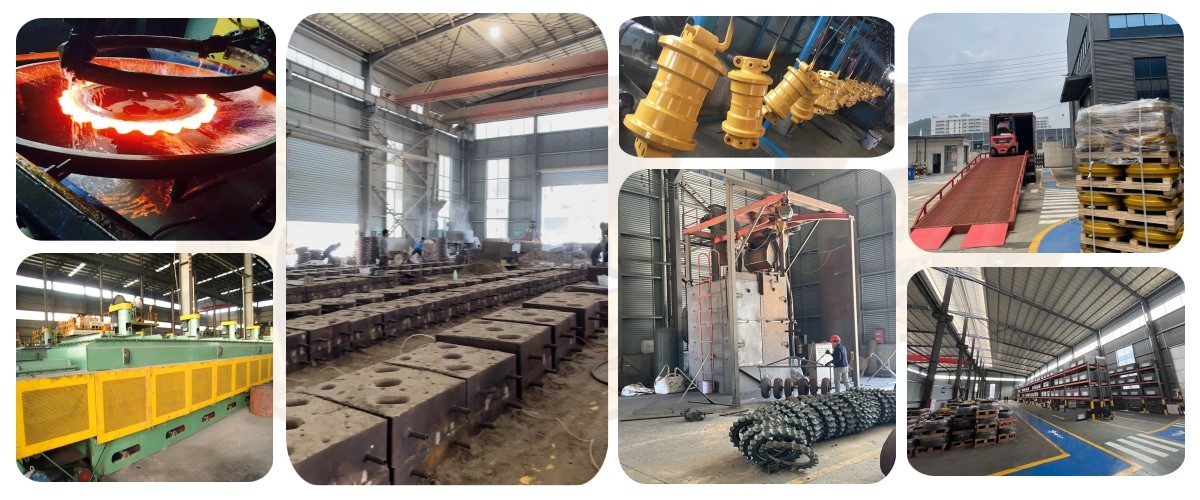

KASU factory overview

Our Factory Advantages

When sourcing bulldozer undercarriage parts, the difference between a high-quality component and a premature failure lies in the manufacturing process. As a leading manufacturer specializing in heavy-duty track groups, we offer:

1. Advanced Forging & CNC Precision

2. Digitalized Heat Treatment Center

3. Rigorous Quality Control (QC) Lab

4. OEM-Level Customization & Massive Inventory
