As a core supporting component of the undercarriage system, the quality of the Track Roller directly impacts the machine's operational efficiency and maintenance costs. In actual procurement, users often face a choice between Bearing Type and Sealed/Lubricated Type, or fail to distinguish between the two, falling into a price-only trap. To objectively evaluate a track roller's quality, one must consider three dimensions: internal structure, material selection, and manufacturing process.

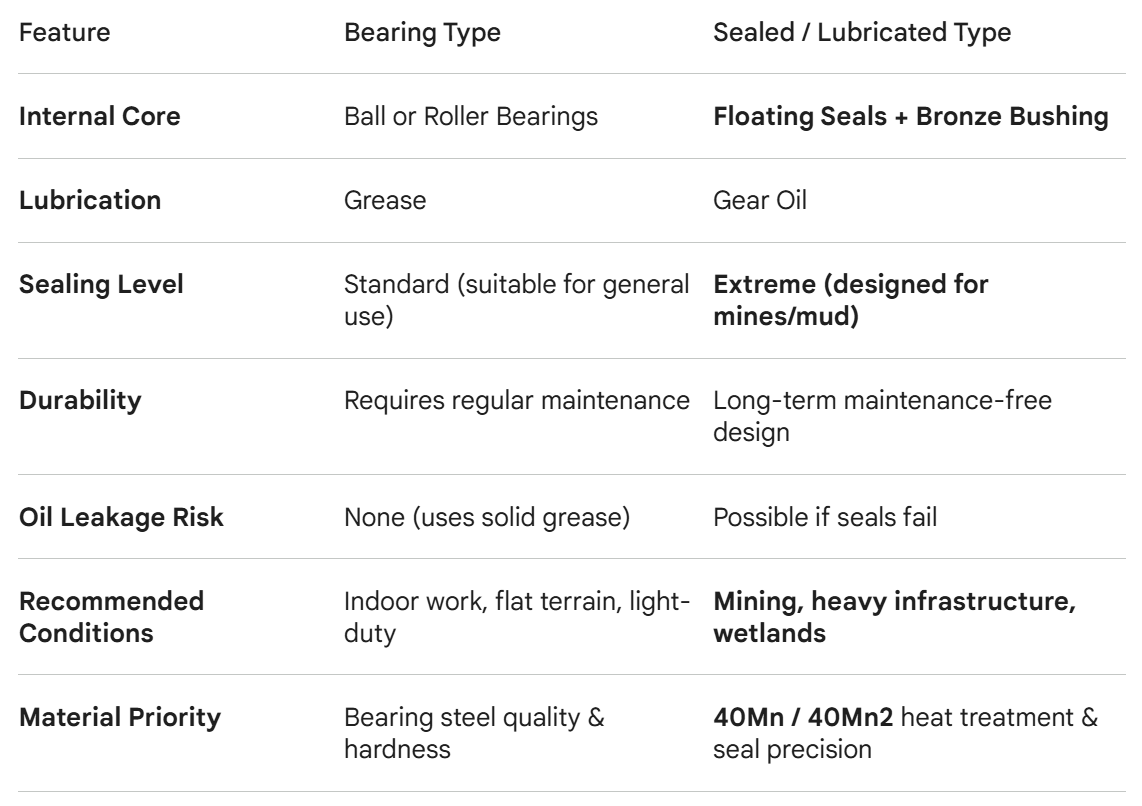

I. Bearing Type vs. Lubricated Type: Structural Features and Application

There is no absolute "better" or "worse" between the two structures; the key lies in whether they match the specific working conditions.

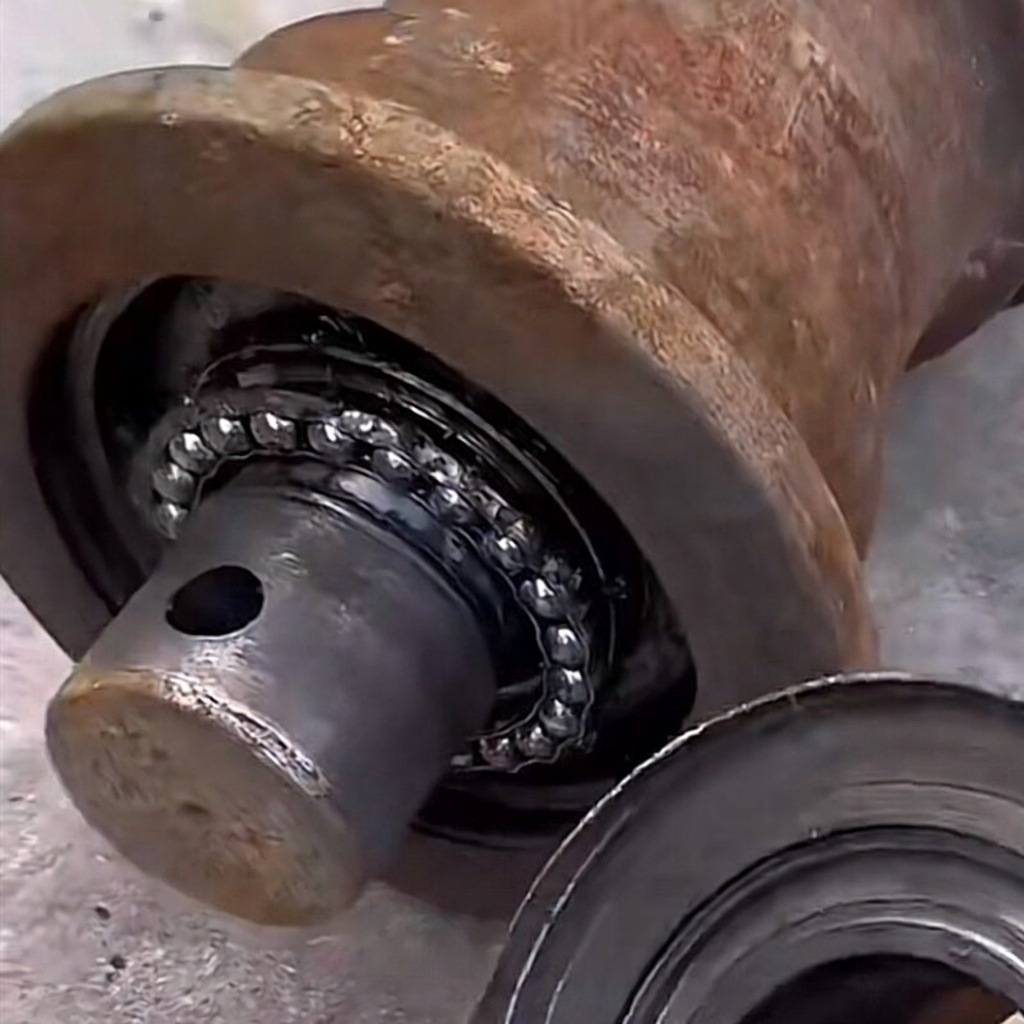

1. Bearing Type Track Roller

• Structural Features: The internal rotation is supported by ball bearings or cylindrical roller bearings, lubricated with grease.
• Applicable Conditions: Suitable for flat ground and relatively dry workplaces, such as indoor demolition, urban road maintenance, or light agricultural machinery.
• Advantages & Limitations: Bearing types offer low starting resistance and lower initial procurement costs. Since they do not contain liquid gear oil, they are often marketed as "leak-proof." While this is a structural characteristic, it is important to note that if the external skeleton oil seal fails and allows sand or mud to enter, the internal bearings will wear and shatter rapidly.

2. Lubricated Type Track Roller (Sealed Type)

• Structural Features: It utilizes a sliding bearing (bronze bushing) combined with Dual-Cone Floating Seals, filled with heavy-duty gear oil.
• Applicable Conditions: Specifically designed for mining, wetlands, river dredging, and high-intensity infrastructure projects.
• Advantages & Limitations: The floating seals effectively isolate microscopic dust and moisture, providing superior sealing performance. The bronze bushing structure offers a high load-bearing capacity and strong impact resistance, making it a long-life, maintenance-free design. The primary drawback is the requirement for extremely high manufacturing precision, which increases costs.

II. Deep Factors Determining Quality: Materials and Process

Beyond visible structural differences, the inherent quality of a track roller depends on the rigor of metallurgy and heat treatment.

1. Material Selection

High-quality track roller bodies are typically made of 40Mn, and the shafts are made of alloy structural steels such as 40Cr. These materials possess excellent hardenability and dense internal fiber structures, allowing them to withstand massive mechanical pressure without cracking. In contrast, low-end products often use ordinary carbon steel, which shows a significant gap in wear resistance and fatigue strength.

2. Heat Treatment (Induction Hardening)

Heat treatment is the "lifeline" of a track roller’s service life.

• Hardness Depth: The tread and flange edges of high-quality rollers must undergo rigorous induction hardening to ensure a surface hardness of HRC 50-56.
• Core Toughness: The depth of the hardened layer must be controlled within a precise range to ensure extreme surface wear resistance while maintaining sufficient core toughness to buffer shock loads.

3. Precision Machining and Assembly

The sealing performance of a lubricated track roller depends heavily on the mirror-grinding precision of the metal seal rings. If the contact surface is uneven or the clearance of the bronze bushing exceeds standards, leakage and abnormal noise will occur quickly, regardless of the material quality.

III. Professional Procurement Advice

1. Be Objective About "No Leakage": Bearing types do not leak oil simply because they contain no liquid oil, but this does not mean their sealing system is invincible. Focus on the seal material (e.g., Fluororubber) and the precision grade of the bearings.
2. Reject Price-Only Decisions: Bearing quality varies significantly. The cost difference between premium bearings and inferior refurbished ones is reflected in the final price. For high-intensity operations, a low price often translates to higher downtime risks.
3. Selection Based on Environment:
   • Dry Work/Light Load: Premium Bearing Type rollers can effectively reduce initial investment.
   • Mining/Wet/Heavy Load: One must choose Lubricated Type products manufactured with induction hardening and high-quality floating seals.

Conclusion

Track roller quality is a comprehensive engineering feat. Superior structural design must be paired with correct material selection and rigorous heat treatment to perform stably in complex construction environments. Understanding these core differences helps buyers select the most compatible parts based on actual working conditions, maximizing equipment efficiency.
