Introduction: More Than Just a Support Component

In the bulldozer undercarriage system, the bulldozer track roller is frequently misunderstood as a simple weight-bearing wheel. While its primary job is to carry the massive weight of the machine, its secondary—and perhaps more critical—role is lateral guidance.

Choosing the wrong configuration or trying to replace a double flange bulldozer track roller with a cheaper single flange version is a common maintenance mistake that leads to thousands of dollars in premature wear.

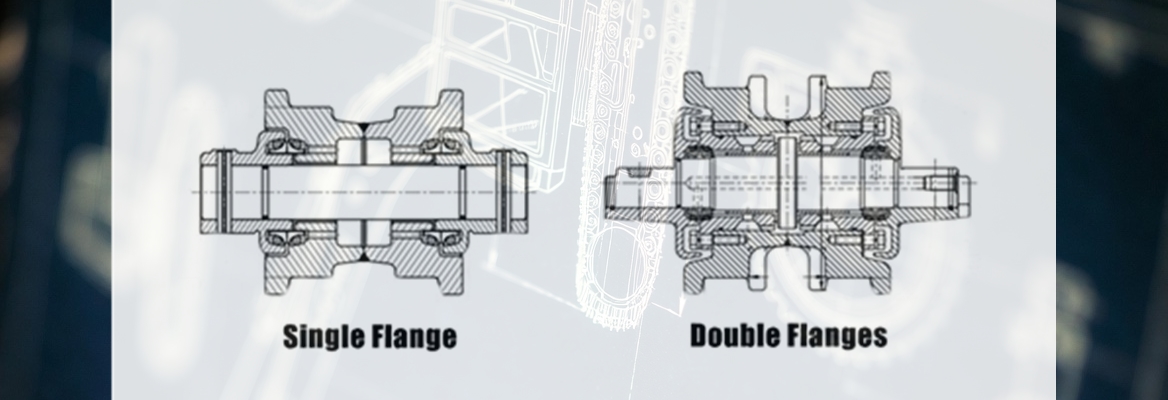

Understanding the Design: Single vs. Double Flange

To optimize your undercarriage life, you must understand how different bulldozer track roller designs interact with the track chain:

• Single Flange Bulldozer Track Roller: This design features two guiding shoulders that sit on the inside of the track link rails. It is engineered primarily to handle vertical downward pressure.
• Double Flange Bulldozer Track Roller: This roller features four shoulders that straddle both the inside and outside of the track rails. This "U-channel" design acts as a track guide, locking the chain into a precise path.

Why You Cannot Substitute Double Flange Rollers

Many fleet managers consider switching to all-single flange rollers to reduce inventory costs. However, the bulldozer track roller configuration is strategically designed by OEM engineers for three vital reasons:

1. Preventing Catastrophic De-tracking

Bulldozers constantly perform high-torque pivots and counter-rotations, especially on slopes. These maneuvers create immense axial (side) thrust. A single flange bulldozer track roller only provides internal resistance. Without the outer "walls" of a double flange roller, the track chain can easily slide off the roller path, leading to immediate de-tracking and potential damage to the track frames.

2. Eliminating the "Snaking" Effect

Without the centering force of double flange rollers, the track chain begins to "snake" or oscillate side-to-side. This instability causes the track links to collide with the drive sprocket and idler flanges. By using the correct bulldozer track roller mix, you prevent this vibration, protecting your most expensive undercarriage assets from "gnawing" wear.

3. Critical Stability for LGP Configurations

Low Ground Pressure (LGP) bulldozers use extra-wide track shoes. These shoes act as a lever during turns, putting extreme twisting force on the rollers. Only the reinforced outer flanges of a double flange bulldozer track roller can counteract this leverage and keep the track rail centered under the machine.

The "False Economy" of Improper Replacement

Substituting a double flange bulldozer track roller with a single flange model is a "false saving." The minor difference in the initial purchase price is quickly eclipsed by the Total Cost of Ownership (TCO):

• Increased Friction: A misaligned track forces the engine to burn more fuel.
• Secondary Component Failure: Vibration from poor guidance destroys final drive seals.
• Labor Costs: Excessive downtime for re-tracking and emergency repairs.

Quality Matters: The Forged 40Mn2 Standard

As a leading bulldozer track roller manufacturer, we emphasize that it is not just the flange count that matters, but the metallurgy. Our rollers are forged from 40Mn2 alloy steel with a deep induction-hardened shell (HRC 52–58). This ensures that the flanges—the most critical part of the double flange roller—do not chip or wear down prematurely under heavy side-loads.

Conclusion

Your bulldozer track roller layout is the "steering system" of your undercarriage. Maintaining the OEM-specified ratio of single to double flange rollers is the only way to ensure maximum service life and operational safety.
