Bulldozer Master Link for Caterpillar D9N

Ideal for mining, construction, and earthmoving operations, our master link for Caterpillar D9N provides reliable connectivity, reducing downtime and maintenance costs.

Inquire Now

Product Categories

New products

Product Details

Caterpillar D9N Bulldozer Master Link Technical Specifications

Specification	Details
Compatible Models	Caterpillar D9N, D9R, D9T Bulldozers
Material	35MnB Alloy Steel (Forged and Heat-Treated)
Pitch	240 mm (9.45 inches)

The main function of the Bulldozer Master Link for Caterpillar D9N

The main function of this master link is to serve as a removable connecting link (split master link) in the track chain assembly of the bulldozer.

In simple terms, it allows the track chain to be easily opened and closed, so operators or technicians can:

Install or remove the entire track chain quickly without disassembling the whole system
Perform repairs, adjustments, or track replacement with minimal downtime

It is bolted together (split design) to provide a strong, secure connection that withstands heavy pulling forces, shocks, and extreme working conditions (such as mining, construction, and earthmoving), while keeping the track aligned and functioning smoothly.

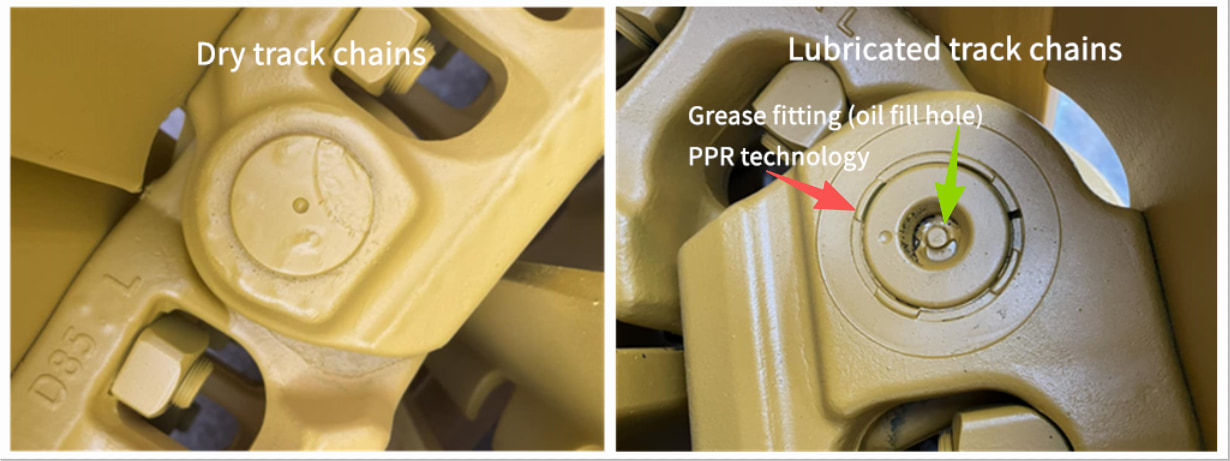

The difference between dry chain and lubricated chain

Key Features

Split Design for Easy Installation: Allows quick assembly and disassembly without special tools, minimizing field downtime.
High-Strength Alloy Steel Construction: Made from 35MnB or equivalent forged steel with heat treatment for HRC 50-58 hardness, offering excellent tensile strength and impact resistance.
Precision Engineering: Press-fit or slip-fit compatibility with sealed and lubricated track chains, ensuring smooth operation and reduced friction.
Corrosion-Resistant Finish: Advanced surface treatment to withstand harsh environments, including abrasive soils and wet conditions.
OEM Compatibility: Matches Caterpillar specifications, including pin diameter, plate thickness, and link height for perfect fit.

Compatibility and Applications

This Master Link is specifically engineered for Caterpillar D9N bulldozers but offers cross-compatibility with D9R and D9T models in similar track chain configurations. It integrates seamlessly with lubricated track link assemblies (e.g., OEM 199-5525). Suitable for:

Heavy-duty mining operations
Large-scale construction sites
Earthmoving and land clearing projects

Verify compatibility with your specific track chain pitch and part numbers for optimal performance. Not compatible with smaller Caterpillar models like D6 or D7 series.

KASU PARTS also supply related products for D9N bulldozer

Track Chain Assembly for Caterpillar D9N
Bottom Rollers for Caterpillar D9N
Front Idler for Caterpillar D9N
Track Shoes and Bolts

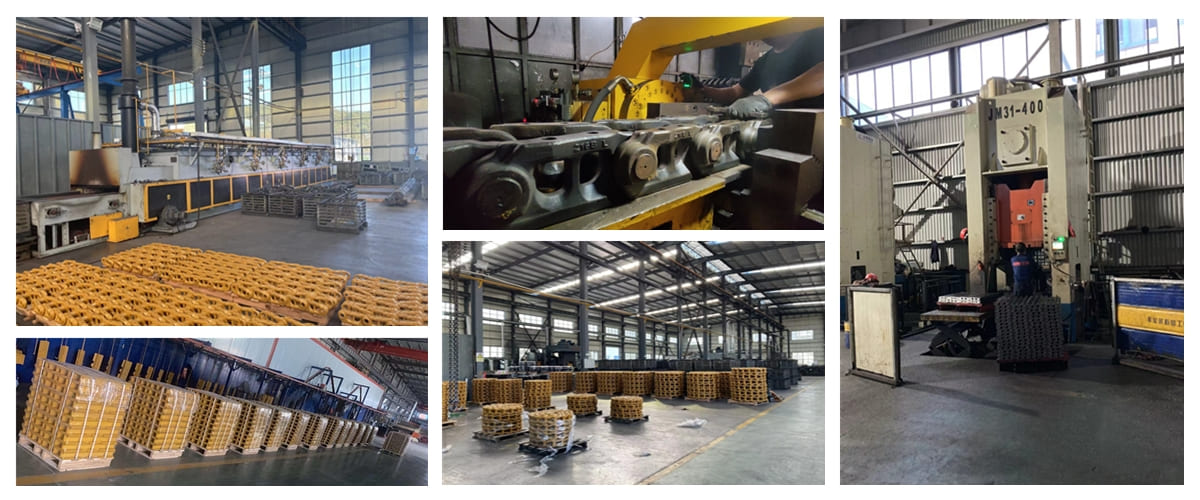

Our Factory Advantages

With more than 10 years of specialized experience in manufacturing heavy equipment undercarriage parts, we are a trusted professional factory dedicated to producing high-quality track rollers, idlers, track chains, track shoes, master links, and other essential components compatible with leading brands like Caterpillar, Komatsu, Hitachi, and more.

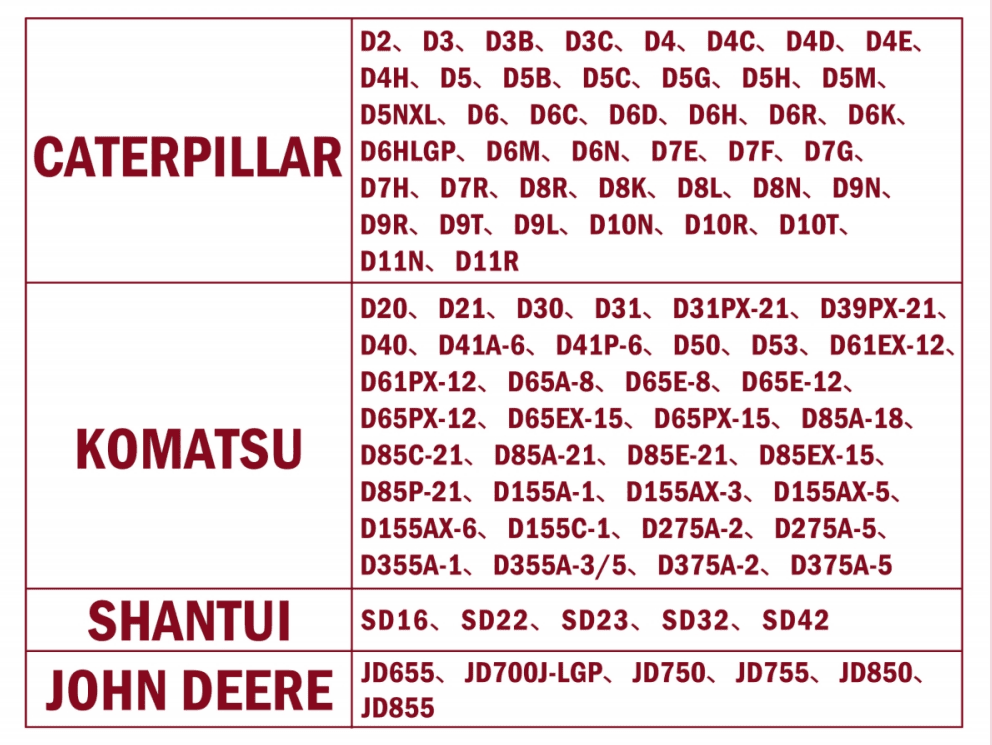

Compitable brand and model

Contact me for more informations:

Whatsapp: 86-18850110101

Email: info@kthpart.com

Hot Tags : bulldozer master link for caterpillar d9n caterpillar d9n track master link replacement cat d9n master link split type caterpillar d9n master link 199-5531 d9n dozer track chain master link aftermarket d9n bulldozer master link compatible with 199-5531
