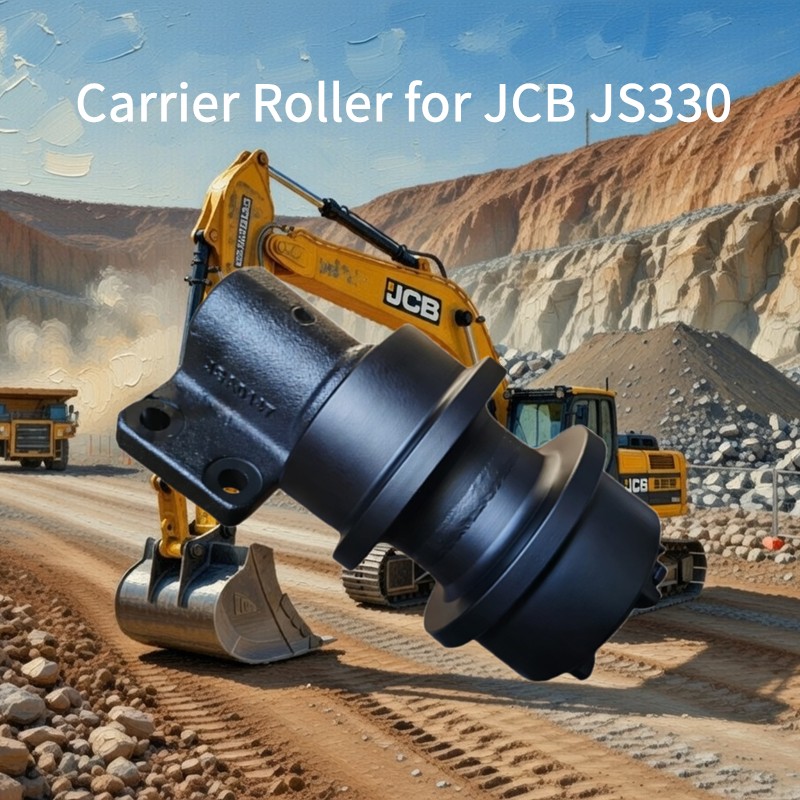

Excavator Carrier Roller KTA0958 for JCB JS300 JS330 Undercarriage

1. JS300/ JS330 Excavator Carrier Roller Technical Specifications

Precision-manufactured to guarantee 100% fitment for the JCB JS series undercarriage.

2. Why This Carrier Roller Solves Real JS300/JS330 Problems

Double-flange design for superior track alignment and reduced side thrust—critical when working on uneven ground or slopes.

Forged 40Mn steel body with induction-hardened tread (HRC 48–56, 6–9 mm depth) — resists flat-spotting and abrasive wear far better than lower-grade rollers.

Precision machined — exact OEM tolerances for drop-in fit, no shimming or alignment headaches.

Weight & balance matched — 85–90 kg per roller, identical to factory spec so machine balance and track life stay consistent.

3. Key Benefits for JS300 / JS330 Operators & Fleets

Lower cost per hour — Aftermarket pricing typically 40–60% below genuine JCB while delivering near-OEM durability.

Minimized downtime — Bolt-on replacement, no special tools needed; most techs swap a pair in under 4 hours.

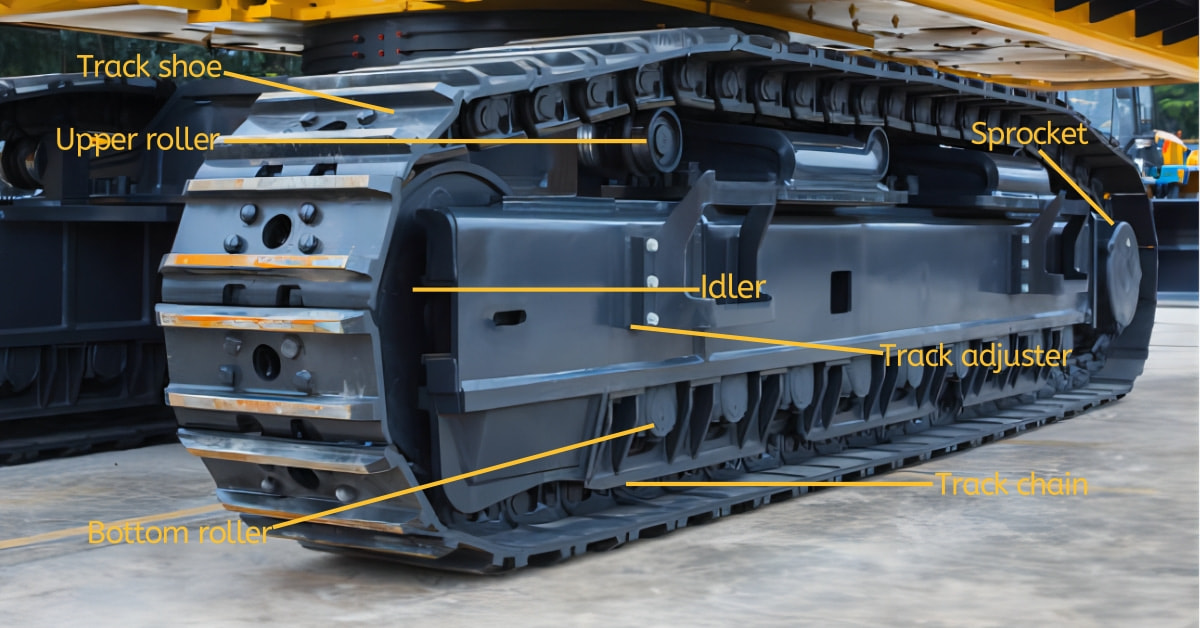

Even undercarriage wear — Proper track guidance reduces stress on bottom rollers, idlers, chains, and sprockets.

4. The High Cost of "Stuck" Top Rollers

In an excavator, the carrier roller is often the most neglected part, but its failure causes a costly chain reaction:

Track Sag Damage: A failed roller allows the track to sag, causing the chain to strike the track frames (track motor covers). This can lead to structural cracks in the chassis.

Drive Motor Strain: A seized roller creates immense friction. The Final Drive must work harder to pull the track over a dead roller, leading to premature motor wear and increased fuel burn.

Link Rail "Flat-Spoting": If the roller doesn't spin, the track links will grind a flat spot into the roller tread. Once this happens, the roller is unrecoverable and will begin to "vibrate" the entire machine.

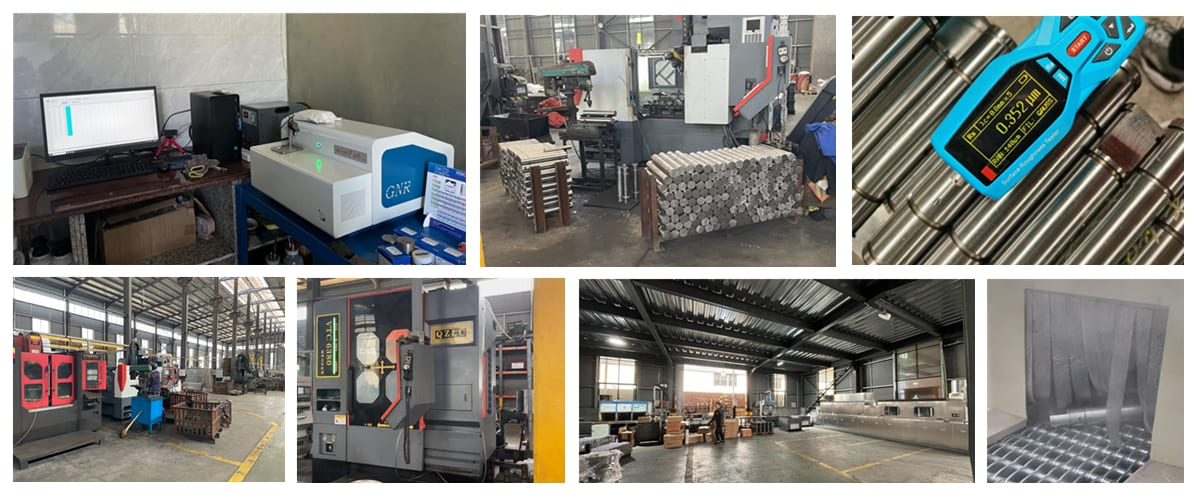

5. Why Choose Our Factory for Your JCB Fleet?

OEM Performance, Aftermarket Pricing: Get the durability of genuine JCB parts without the dealer markup.

Extreme Climate Resilience: Our seals are tested for performance in temperatures ranging from -20°C to +100°C, making them ideal for both arctic mining and desert construction.

Rapid Response Inventory: We maintain a dedicated stock of KTA0958 rollers to minimize your machine's downtime.

FAQ

Q: Will this fit my JS330XD or older JS300 models?

A: Yes — same mounting dimensions and flange geometry across the JS300/JS330 series.

Q: How many carrier rollers per machine?

A: Usually 2 per side (4 total) on standard JS300/JS330 undercarriage.

Q: Do you supply full undercarriage kits for JS330?

A: Yes — we offer matched sets including track chains, bottom rollers, idlers, sprockets, and shoes. Contact us for a complete quote.
