In the heavy construction industry, excavator undercarriage parts represent nearly 50% of the total maintenance cost of the machine. While many fleet managers focus on purchasing high-quality components like 35MnB excavator track links, there is a silent factor that can cut their service life in half: Misalignment.

If you want to maximize your ROI and minimize downtime, you need to master the "Three-Point Line" alignment method.

What Are the Core Excavator Undercarriage Parts?

Before we dive into the maintenance secret, let's identify the key players in your undercarriage system:

• The Sprocket: The power source that drives the chain.
• The Idler (with Fork): The guide that maintains tension and direction.
• Track Rollers & Carrier Rollers: The support system that carries the machine's weight.
• The Track Chain (Links): The "backbone" made of premium 35MnB steel.

For these excavator undercarriage parts to work in harmony, they must stay perfectly aligned.

The "Three-Point Line" Method: A 10-Minute Life-Saver

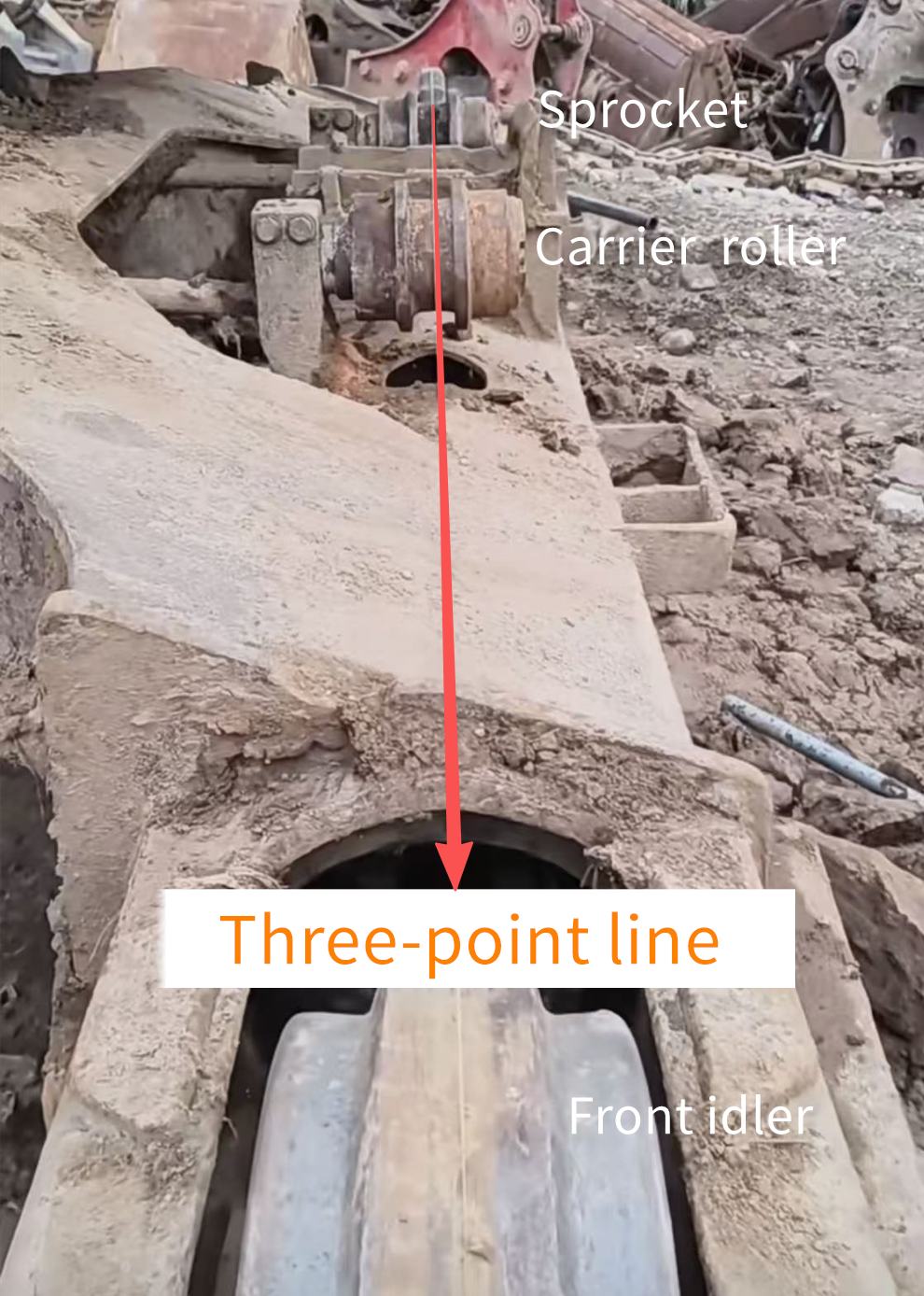

"Three-Point Line" refers to the perfect vertical alignment of the Sprocket center, the Carrier Roller center, and the Idler center. When these three points are in a straight line, the track chain travels in its intended path without lateral stress.

How to Perform the "String Line" Test:

1. Stretch a Line: Pull a thin, tight wire or string from the outer edge of the Sprocket to the outer edge of the Idler.
2. Inspect the Path: Observe the Carrier Roller and the Track Rollers along this line.
3. Check for Gaps: If the string is being pushed outward or if there is an uneven gap between the string and the rollers, your undercarriage is misaligned.

Why Misalignment Destroys Your Undercarriage

Even the best excavator undercarriage parts—such as our carburized 35MnB track links—cannot withstand the friction caused by a crooked frame. Misalignment leads to:

• Side-Wear (Gnawing): The rollers will "gnaw" at the sides of the track links, eating through the hardened "carburized shell" prematurely.
• Seal Failure: Lateral pressure squeezes the floating seals in your rollers and idlers, leading to oil leaks and seized bearings.
• Power Loss: A misaligned track increases friction, forcing the engine to burn more fuel to move the machine.

Conclusion: Precision Alignment Meets Precision Parts

To get the longest life out of your excavator undercarriage parts, you must pair professional maintenance with premium components. Before installing your next set of excavator track links, pull a line and check your "Three Points."

Looking for high-performance excavator undercarriage parts? Whether you need 35MnB carburized track chains, idlers with forks, or heavy-duty sprockets, we have the precision-engineered solutions for your fleet.
